Product Description

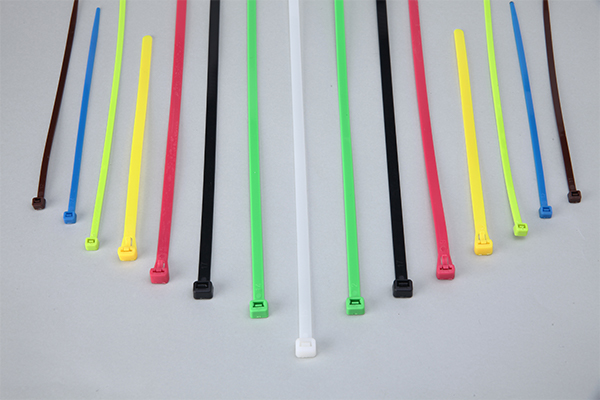

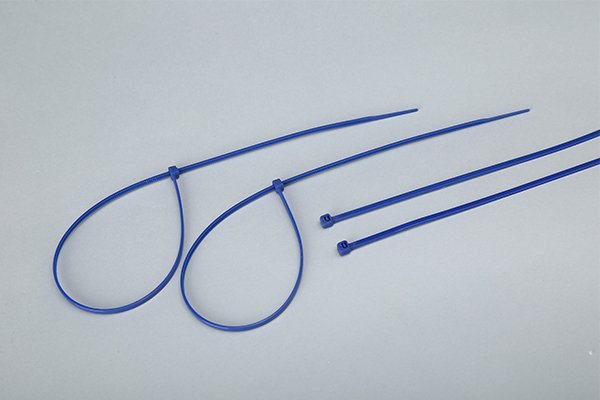

Colored Cable Ties
Applications: For wire/cable bunching, DIY, different color ties easily identification.
Features: All types of cable ties are available in colors.
Industries:
Chemicals & Refineries
Dairy & Food Processing
Drug & Pharma
DIY
Specifications
Material: Imported UL Approved Nylon 66 from INVISTA, Ascend, DuPont, etc, Good Quality Brand, heat-resisting, erosion control, insulate well and not apt to age.
Color: All colors are available
Operating Temp: -40℃ to +85℃
Flammability Rating：UL 94V-2
Testing Certificate：CE, Rohs, Reach
Packing: 100 pcs/bag in all sizes & 1000 pcs/bag upto 200mm length
Unit: 100 pcs/bag & 1000 pcs/bag, Custom Packaging
| ITEM NUMBER & DESCRIPTION | Length | Width | BUNNDLE DIAMETER | TENSILE STRENGTH | BAGS/CTN | GW/CTN | NW/CTN | CBM/CTN | ||
| 100PCS/BAG | Inch | MM | MM | MM | LBS | KGS | kg | kg | ||
| HTS-2.5x80 | 3.2'' | 80 | 2.5 | 2--16 | 18 | 8 | 600 | 13 | 12 | 52x30x31 |
| HTS-2.5x100 | 4.0'' | 100 | 2--22 | 500 | 14 | 13 | 52x30x31 | |||
| HTS-2.5x120 | 4.7'' | 120 | 2--30 | 500 | 16.5 | 15.5 | 52x30x31 | |||
| HTS-2.5x150 | 6.0'' | 150 | 2--35 | 400 | 16.5 | 15.5 | 52x30x31 | |||
| HTS-2.5x200 | 8.0'' | 200 | 2--50 | 300 | 16.5 | 15.5 | 52x30x31 | |||
| HTS-3.6x100 | 4.0'' | 100 | 3.6 | 3--33 | 40 | 18 | 260 | 12 | 11 | 52x30x31 |
| HTS-3.6x120 | 4.7'' | 120 | 3--33 | 250 | 14 | 13 | 52x30x31 | |||
| HTS-3.6x150 | 6.0'' | 150 | 3--35 | 250 | 17 | 16 | 52x30x31 | |||
| HTS-3.6x180 | 7.1'' | 180 | 3--42 | 200 | 15 | 14 | 52x30x31 | |||
| HTS-3.6x200 | 8.0'' | 200 | 3--50 | 200 | 17 | 16 | 52x30x31 | |||
| HTS-3.6x250 | 10'' | 250 | 3--65 | 150 | 16 | 15 | 52x30x31 | |||
| HTS-3.6x280 | 11'' | 280 | 3--70 | 130 | 17.5 | 16.5 | 52x30x31 | |||
| HTS-3.6x300 | 12'' | 300 | 3--80 | 130 | 18 | 17 | 52x30x31 | |||
| HTS-3.6x350 | 13.8'' | 350 | 3--90 | 120 | 20 | 19 | 52x30x31 | |||
| HTS-3.6x370 | 14.6'' | 370 | 3--105 | 120 | 20 | 19 | 52x30x31 | |||
| HTS-4.5x160 | 6.0'' | 150 | 4.5 | 3--40 | 50 | 22 | 150 | 14 | 13 | 52x30x31 |
| HTS-4.5x180 | 7.1'' | 180 | 3--42 | 150 | 16.5 | 15.5 | 52x30x31 | |||
| HTS-4.5x200 | 8.0'' | 200 | 3--50 | 150 | 17 | 16 | 52x30x31 | |||
| HTS-4.5x250 | 10'' | 250 | 3--65 | 120 | 17 | 16 | 52x30x31 | |||
| HTS-4.5x280 | 11'' | 280 | 3--70 | 100 | 16 | 15 | 52x30x31 | |||
| HTS-4.5x300 | 12'' | 300 | 3--80 | 100 | 17 | 16 | 52x30x31 | |||
| HTS-4.5x350 | 13.8'' | 350 | 3--90 | 90 | 19 | 18 | 52x30x31 | |||
| HTS-4.5x380 | 14.6'' | 380 | 3--102 | 80 | 19 | 18 | 52x30x31 | |||
| HTS-4.5x400 | 15.8'' | 400 | 3--105 | 80 | 20 | 19 | 52x30x31 | |||
| HTS-4.5x450 | 17.7'' | 450 | 3--130 | 50 | 22 | 70 | 20 | 19 | 52x30x31 | |
| HTS-4.5x500 | 18.9'' | 500 | 3--150 | 50 | 16 | 15 | 52x30x31 | |||
| HTS-4.8x200 | 8.0'' | 200 | 4.8 | 3--50 | 50 | 22 | 150 | 18 | 17 | 52x30x31 |
| HTS-4.8x250 | 10'' | 250 | 3--65 | 120 | 19 | 18 | 52x30x31 | |||
| HTS-4.8x300 | 12'' | 300 | 3--80 | 100 | 18 | 17 | 52x30x31 | |||
| HTS-4.8x350 | 13.8'' | 350 | 3--90 | 90 | 21 | 20 | 52x30x31 | |||
| HTS-4.8x380 | 14.6'' | 380 | 3--102 | 80 | 20 | 19 | 52x30x31 | |||
| HTS-4.8x400 | 15.8'' | 400 | 3--105 | 80 | 21.5 | 20.5 | 52x30x31 | |||
| HTS-4.8x450 | 17.7'' | 450 | 3--130 | 50 | 22 | 70 | 21.5 | 20.5 | 52x30x31 | |
| HTS-4.8x500 | 18.9'' | 500 | 3--150 | 50 | 18 | 17 | 52x30x31 | |||
| HTS-4.8x600 | 23.6'' | 600 | 3--170 | 20 | 10 | 9 | 71x33x19 | |||
| HTS-4.8x740 | 29.1'' | 740 | 3--200 | 20 | 13 | 12 | 84x33x19 | |||
| HTS-7.2x150 | 6.0'' | 150 | 7.2 | 3--35 | 120 | 55 | 70 | 20 | 19 | 52x30x31 |
| HTS-7.2x200 | 8.0'' | 200 | 3--50 | 60 | 21 | 20 | 52x30x31 | |||
| HTS-7.2x250 | 10'' | 250 | 4--65 | 60 | 18 | 17 | 52x30x31 | |||
| HTS-7.2x300 | 12'' | 300 | 4--80 | 50 | 13 | 12 | 52x30x31 | |||
| HTS-7.2x350 | 14'' | 350 | 4--90 | 40 | 14 | 13 | 52x30x31 | |||
| HTS-7.2x380 | 15'' | 380 | 4--100 | 40 | 18 | 17 | 52x33x31 | |||
| HTS-7.2x400 | 16'' | 400 | 4--105 | 40 | 19 | 18 | 52x33x31 | |||
| HTS-7.2x450 | 18'' | 450 | 4--110 | 35 | 19 | 18 | 52x30x31 | |||
| HTS-7.2x500 | 20'' | 500 | 4--150 | 30 | 18 | 17 | 52x30x31 | |||
| HTS-7.2x550 | 21.6'' | 550 | 4--165 | 20 | 15 | 14 | 61x33x19 | |||
| HTS-7.6x200 | 8.0'' | 200 | 7.6 | 3--50 | 120 | 55 | 60 | 21 | 20 | 52x30x31 |
| HTS-7.6x250 | 10'' | 250 | 4--65 | 60 | 18 | 17 | 52x30x31 | |||
| HTS-7.6x300 | 12'' | 300 | 4--80 | 50 | 13 | 12 | 52x30x31 | |||
| HTS-7.6x350 | 14'' | 350 | 4--90 | 40 | 14 | 13 | 52x30x31 | |||
| HTS-7.6x380 | 15'' | 380 | 4--100 | 40 | 18 | 17 | 52x33x31 | |||
| HTS-7.6x400 | 16'' | 400 | 4--105 | 40 | 19 | 18 | 52x33x31 | |||
| HTS-7.6x450 | 18'' | 450 | 4--110 | 35 | 19 | 18 | 52x30x31 | |||
| HTS-7.6x500 | 20'' | 500 | 4--150 | 30 | 18 | 17 | 52x30x31 | |||
| HTS-7.6x550 | 21.6'' | 550 | 4--165 | 15 | 11 | 10 | 60x33x19 | |||
| HTS-8.8x400 | 16'' | 400 | 8.8 | 8--105 | 175 | 79.4 | 25 | 18 | 17 | 52x30x31 |
| HTS-8.8x450 | 18'' | 450 | 8--118 | 20 | 16 | 15 | 52x30x31 | |||
| HTS-8.8x500 | 20'' | 500 | 8--150 | 20 | 17 | 16 | 52x30x31 | |||
| HTS-8.8x550 | 21.6'' | 550 | 8--160 | 15 | 14 | 13 | 60x33x19 | |||
| HTS-8.8x600 | 23.6'' | 600 | 8--170 | 15 | 15 | 14 | 71x33x19 | |||
| HTS-8.8x650 | 25.6'' | 650 | 8--185 | 15 | 16 | 15 | 71x33x19 | |||
| HTS-8.8x710 | 28.3'' | 710 | 8--195 | 15 | 18 | 17 | 84x33x19 | |||
| HTS-8.8x760 | 29.9'' | 760 | 10--210 | 15 | 19 | 18 | 84x33x19 | |||
| HTS-8.8x800 | 31.5'' | 800 | 10--230 | 15 | 20 | 19 | 91x33x19 | |||
| HTS-8.8x920 | 36.2'' | 920 | 10--265 | 15 | 23 | 22 | 98x33x19 | |||
| HTS-8.8x1000 | 43.3'' | 1000 | 10--335 | 15 | 25 | 24 | 115x33x19 | |||
| HTS-8.8x1200 | 47.2'' | 1200 | 10--370 | 15 | 35 | 34 | 126x33x19 | |||
